Quick Details

  • Condition: New
  • Type: Stone Cutting Machine
  • Use: Marble
  • Production Capacity: 2~7M/MIN
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: chuangkingda (CKD)
  • Model Number: CKD004-1
  • Voltage: 220V, 380V, 400V, 480V / 50HZ, 60HZ, three face
  • Power(W): 7.1kw
  • Dimension(L*W*H): 2300*1900*1000MM
  • Weight: 1200KG
  • Certification: CE
  • Warranty: one year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Belt width: 820mm
  • Convey speed: 2~7m/min
  • Blade diameter: 116-120mm
  • Transmission Power: 1.1kw
  • Shaft Power: 3kw
  • Working width: 50~800mm
  • Working thickness: 6~20mm
  • water consumption: 150L/MIN
  • Working object: ceramic tiles porcelain marble cutting
  • cutting type: one pc cut to two pcs

Packaging & Delivery

Packaging Details Film with container by ocean, or customized with your request.
Shipping standard
Delivery Time 30DAYS
Product Description



CKD004-1 Automatic CNC Ceramics Tiles Cutting Machine Manufacturer wet type cutting



CNC Consecutive Tiles Cutting Machine is the new machine that improve from full automatic

continuous cutting machine to solve the problem that high worker cost, Disac quaintance handle,

Slow speed, Process size small and big opposite angles error. Use this machine,We need only one

worker press the number in the panel to make the machine automatic adjust size and cut with low

error and low cost.



Parameter with 2Heads cutting machine:

1

belt width:

820mm

2

conveyor speed:

2-7m/min

3

blade diameter:

116-150mm

4

power of frequency conversion convey motor:

1.1kw

5

power of main shaft:

3kw*2

6

total power:

7.1kw

7

working width:

50-800mm

8

working thickness:

6-30mm

9

water consumption:

150l/min

10

size of machine(l*w*h):

2.2*1.9*1.0m

11

weight about:

1000kg



Cutting type: Pre-cutting, Cutting

Pictures with CNC cutting machine:





Parameters with Three heads cutting machine:



1.

working heads:

3sets

2.

belt width:

820mm

3.

working width:

25-800mm

4.

working thickness:

6-30mm

5.

conveyor speed:

2-8m/min

6.

blade diameter:

116-150mm

7.

conveyor power:

2.2kw

8.

power of cutting:

3kw*2sets

9.

power of chamfering:

2.2kw*1set

10.

total power:

10.4kw

11.

water consumption:

150l/min

12.

size of machine(l*w*h):

2030*1650*1500mm

13.

weight about:

1200kg



 Cutting Type: 1. Per-cutting, 2. chamfering, 3. cutting

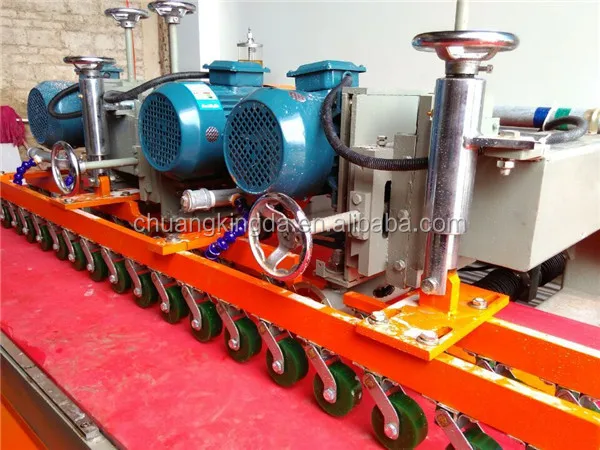

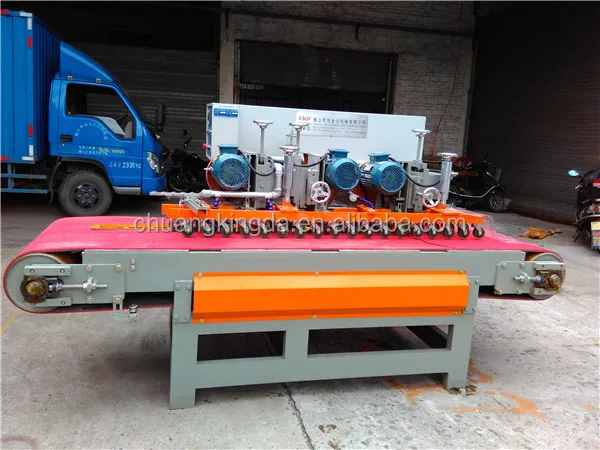

Pictures with CNC cutting machine:

Company Information

CKD (CHUANGKINGDA) MACHINERY CO.,LTD is specialized in the research production of Ceramic Stone Quartzite series of Automatic Cutting Machine, Automatic Stone Polishing Machine, Automatic Stair Step Skirting Machine, Automatic Squaring And Chamfering Grinding

Machine, Automatic Multi-function Polishing Machine, Automatic Cutting And Chamfering Production Line, Automatic Loading Unloading Machine etc mechanical equipment. It's a collection of ceramic equipment research and development manufacturing, Sales and after ales service in the integration of industry and trade integration of Machinery Co., Ltd. Has a group

of experienced engineers , Professional and technical personnel and after sale service team, And has

perfect machining capacity. The company adhering to the " refine on, cooperation and win-win" business

philosophy, To ChuangKingDa, Made in China, Success the life, Towards the world!

” Strategic goal, Constant research and development, Manufacture and sales of high technology content,

High quality new products to meet market demand, Make the customer be richly rewarded.



Our CKD Elite Group Show:


Our workshop for making machine:



Our CKD Shipment Show:





Packaging & Shipping

1. Machine will be packaged in standard wooden case after tested or packaged with film by container in standard.

2. Product will be shipped within 5~25 days after received payment.

3. We can ship to you Machine by Ocean , spare parts or documents by DHL /TNT / UPS / EMS / Fedex... if you have any request Pls contact us directly and we will ship as your requirement.



FAQ

Q1: How to order?

A: inquiry>>discuss machine details>>quotation>>confirmation layout and contract>>payment in advance>>order to factory>>inform customer>>payment balance >>contact ship booking container>>load container>>inform and confirm all documents>>made original documents>>sent documents to customer by express>>inform customer and follow tracking>>after customer inform arrange technology after-sales service.

Q2: About Min order QTY?

A: As customers’ options, you can order one set machine or whole line or we customized with your factory.

Q3: About customization?

A: ODM/OEM business partner will be warmly welcome.

Q4: About sample?

A: For Machine No have Sample. if you need stone line, yes we can arrange sample for you buy traffic expense should be payment from your side.

Q5: About price?

A: Price is based on configuration QTY, payment terms, time of delivery.

Q6: How to request machine?

A: you just tell us:

Which effect you need?

Which size for work before work or finish work?

Which material in the machine to processing?

How many capacity you request?

Q7: Country of Origin?

A: Made In China
